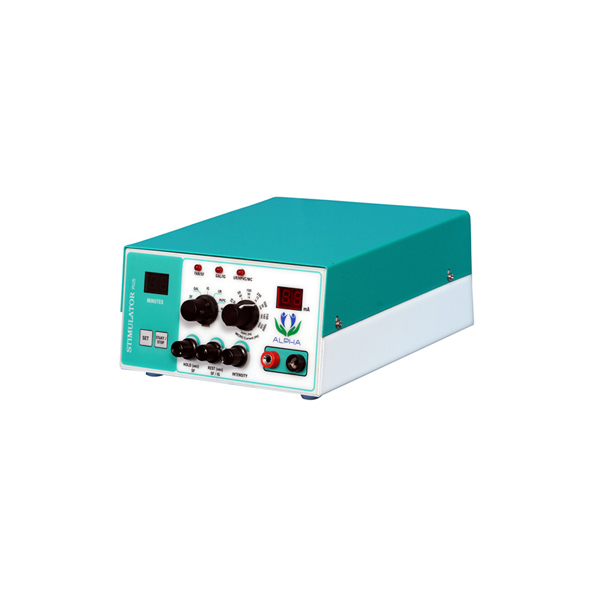

Stimulator plus

To Buy
Download Brochure

Stimulator plus comes with an advanced single micro controller which controls all operations like output drive, timer, intensity control/indication and modes of the machine hence brings accuracy in its performance.

FEATURES

  • Feather touch keypad
  • Feather touch keypad
  • Stand alone Start/ Stop switch for output control
  • Configurable treatment cycle and Intensity level
  • User friendly selector knobs for therapy mode selection
  • User friendly 7 segment display for treatment cycle and output indication
  • Equipped with “PIC” microcontroller
Category:

Description

SPECIFICATIONS

Therapy Modes F, SF, G, IG, U-REIZ, HVPC , Micro Current
Faradic 0.7mS ON time @20mS period
Surge Faradic Faradic @ Hold &
Rest 1 to 6 sec adjustable
Interrupted Galvanic ON time : 0.01,.03,0.1,0.3,1,3,10,30,100,300&1000 ms
Output 0 – 65 mA adjustable
Timer 1 to 30 min adjustable
Power Supply SMPS @ 100V–275VAC, 50Hz
Dimension 185 x 205 x 90 mm
Weight 1.7 Kg
